Cd10.241

PULS DC / DC Converters

CD10.241

Code PUCD10.241

Available in 3/4 weeks

Quantity

- +

Price

€ 255,99

ADD TO CART

Technical specifications

DC/DC Converter - OUT: 24-28Vdc, 10A (0,2)

Description

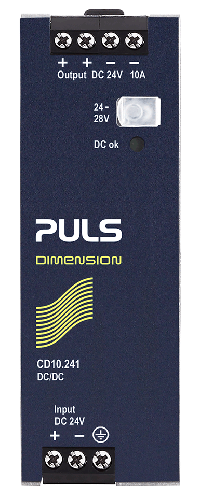

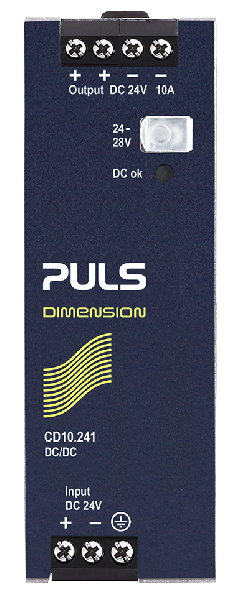

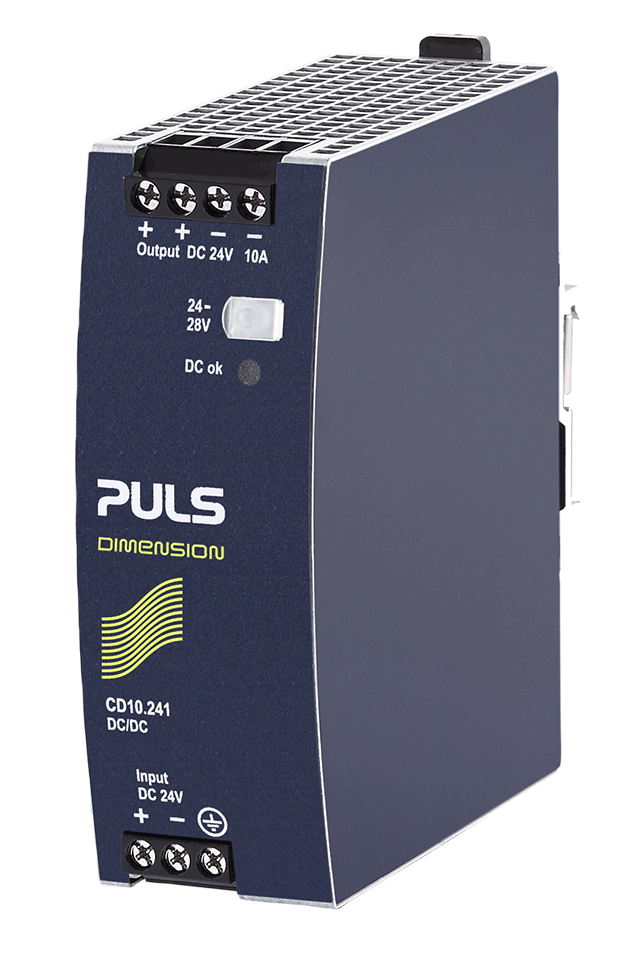

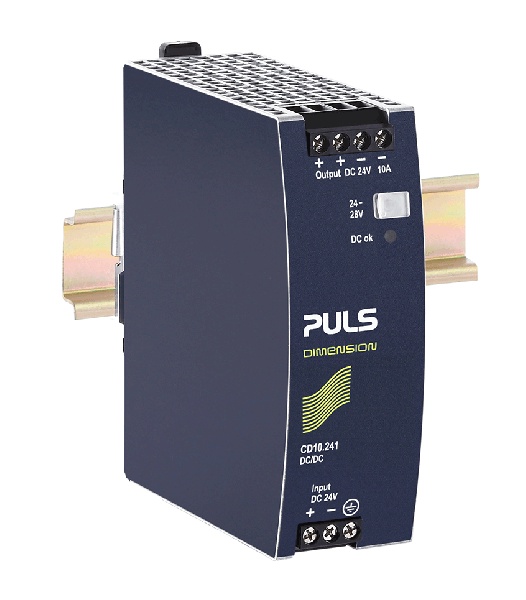

The PULS CD10.241 is a DC / DC converter in DIN rail 240 W of power. The + 20% bonus below 45 ° C allows the temperature of up to 288 W. Input voltage 18 - 35 VDC. Adjustable output voltage via trimmer 24 to 28 Vdc, at a current of 10 - 8.6 A. The DC / DC converter can be powered by a battery or a similar source, or can be used to cool and stabilize the correct voltage at the end of a long cable. The product is ATEX certified. Like every product PULS guarantees efficiency and MTBF among the highest available on the market. The wide operating temperature range allows its use in the most extreme applications.

Download

download pdf PUCD10.241.pdf
