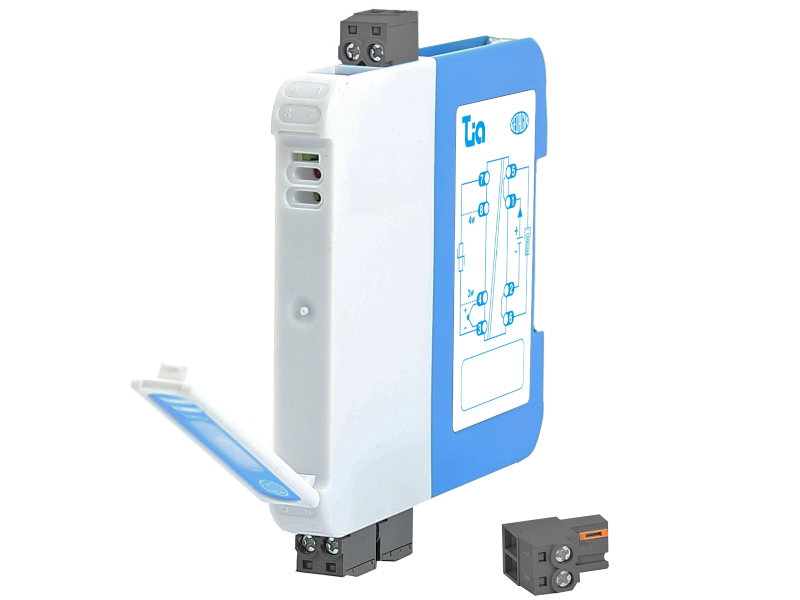

GEORGIN Rail Mounted Temperature Transmitters

TIA3A

Code GETia3A



out of stock Available in 3/4 weeks

Quantity
- +

Price
€ 161,02

ADD TO CART

Technical specifications
Hart protocol temperature converter
Output 4... 20 mA passive two-wire technique
Power supply 10...28Vdc
Operating temperature: -40°C +85°C
Height: 110mm
Width: 15mm
Depth: 110mm
SIL2 Certificate

Description
The Tia3A Hart protocol temperature converters are suitable for converting a wide range of input signals:
Conversion of temperature measurement for temperature sensor PT100,PT1000,Ni 100,Ni 1000
Thermocouples: K, J, E, N, T, R, S, L,U,B,C,D,G,mV
Linear resistance and potentiometer for level sensors or valve positioners
These converters are suitable for DIN rail mounting and are Certificates for  safety function up to SIL2
There are four possible configuration modes:
HART interface (Georgin TIXLINK4 Hart configuration kit USB/232 modem) with the ProgressXmanager software free from the Georgin website,
Using the SDC-625 software of the HART application
With FDT configuration interface with HART 5-6-7 compatibility
EDD file available on Georgin website
