STATUS In Head Temperature Transmitters

STSEM206TC-S

Name: STSEM206TC-S
Brand: STATUS
SKU: STSEM206TC-S
Price: 63.12 EUR
Availability: InStock

Code STSEM206TC-S

Available

Quantity

- +

Price

€ 51,74

Price

€ 63,12 vat inc.

ADD TO CART

Technical specifications

Programmable Transmitter for Thermocouple sensors

K, J, N, E, T, R, S thermocouples plus mV

Isolated input to output

Over range LED indication

Programmable burnout

Mounting Screws Included

EMC Approval

Description

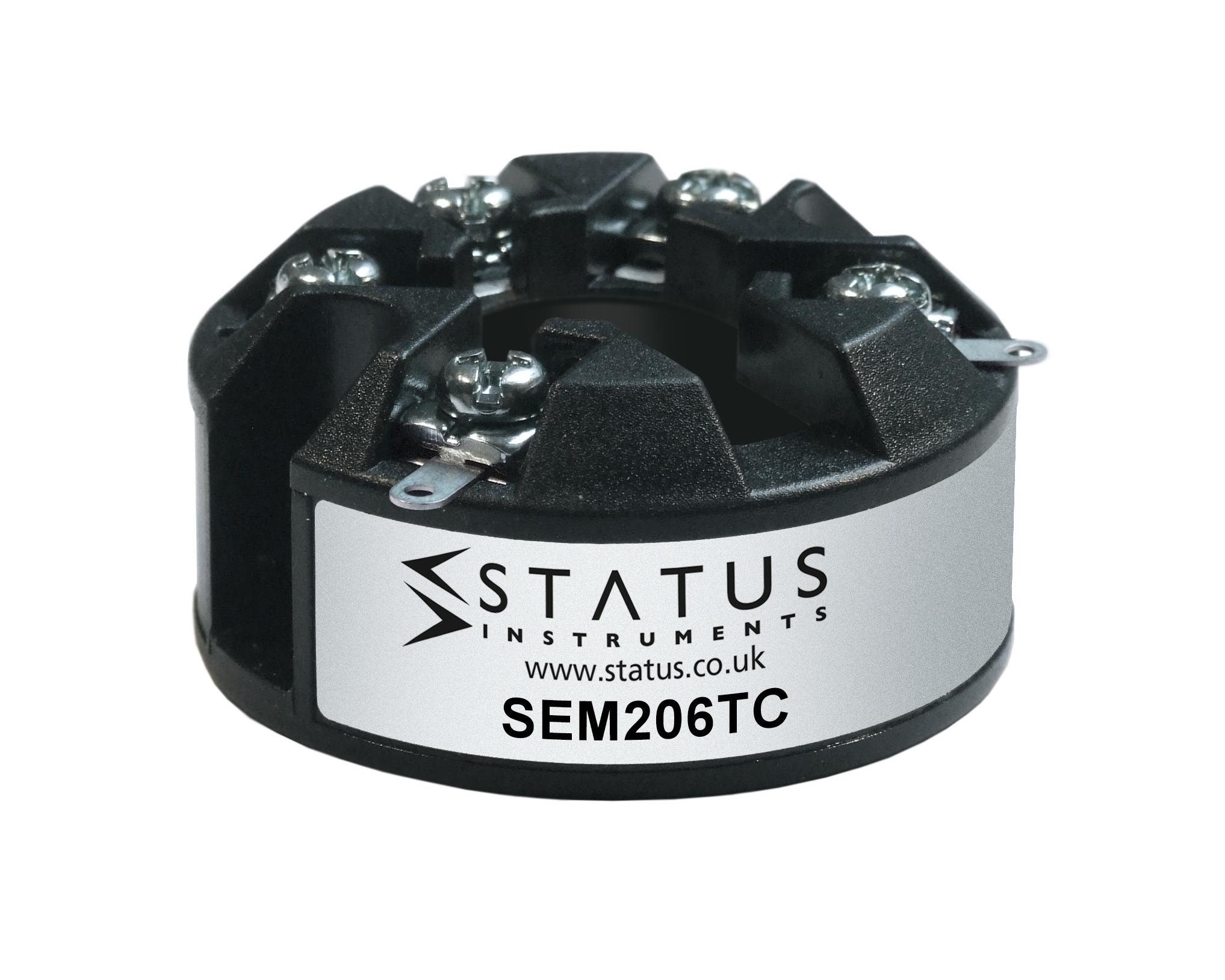

The SEM206TC-S thermocouple temperature transmitter is a cost effective “smart” in head transmitter that accepts thermocouple temperature sensors.

It converts the sensor output over a configured range, to a standard industrial (4 to 20) mA transmission signal.

PC configuration allows the user to select TC type, range, units and burnout direction, without requiring calibration

equipment. Configuration is performed quickly using a our USB port driven configurator by simply connecting two

clips to the SEM206TC loop terminals and following the software instructions. Calibration set up may be saved as a

file on the PC for later use. If required the desired range can be specified at the time of order, removing the need for user configuration.

Download

download pdf 262.pdf

STATUS Universal converters

STUSB-CONF-MKII

USB Configuration Kit

Powered From USB Port

Used With Free Software Download

Simple To Use

Products that are configured with this device are

SEM106P

SEM206P, TC, TH

TTR200 and X

TTC200 and X

HTR200

HTR201

STA206

SEM160I series

SEM1800 series
