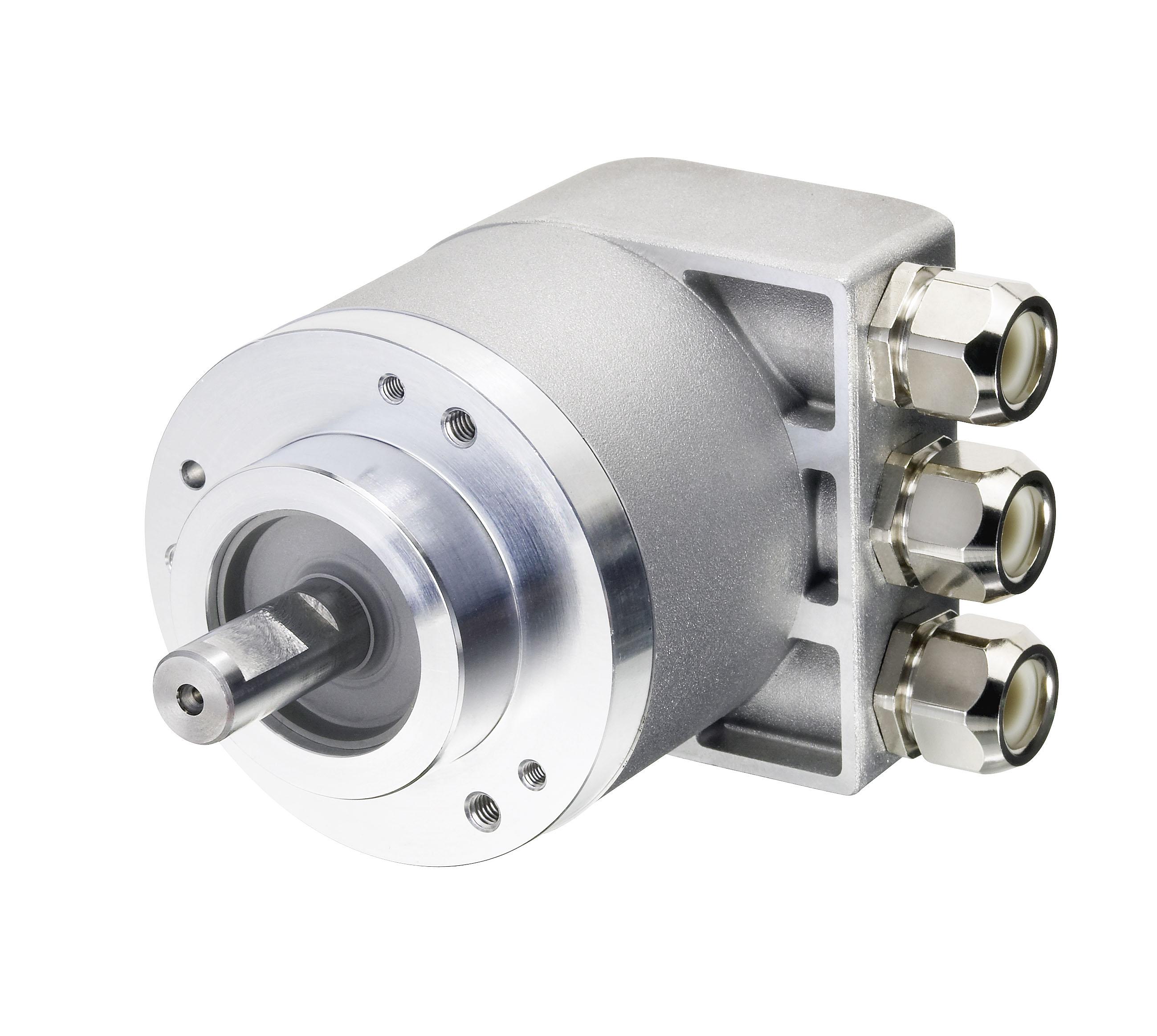

HENGSTLER Encoder rotativo Assoluto

AC58/1212EK.42DPZ

Code HE0566003



out of stock Available in 5/6 weeks

Quantity
- +

Price
€ 803,76

ADD TO CART

Technical specifications
Ac58/1212ek.42dpz HENGSTLER
Pulse: 12 bit ST + 12 bit MT
Supply voltage: 10/30 Vdc
Flange: Clamping
Protection: IP64
Shaft: Solid shaft diam. 10 mm.
Output: PROFIBUS DP
Connection: Bus cover with 3 cable glands
Special options: N.A.
Certification: CE - UL/CSA - RoHS
Description

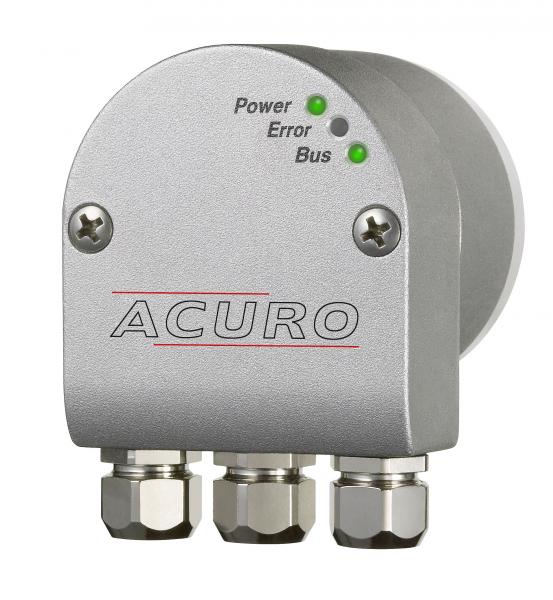

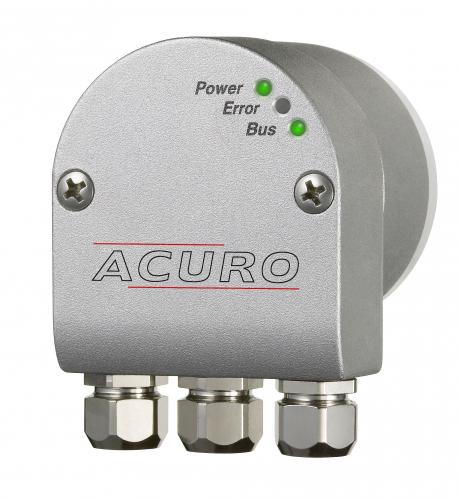

  • Diagnostic LED
  • Cable or M12 connector
  • Output of speed, acceleration
  • Programmable: Resolution, Preset, Direction, Operation time
  • Option: Display "tico"
  • Address via interface parameterizable (optional)
